SKU:S8012-0000
Starlab
Thermomixer-Mixer HC
Thermomixer-Mixer HC
In stock
- Mixing, heating, cooling and timing combined in one instrument
- Automatic thermoblock recognition simplifies block exchange
- PROGRAM mode for creation of individual protocols
- SHORT MIX function for instant mixing at the push of a button
- INTERVAL MIX function for alternating between mixing and resting
- Robust housing and small footprint
- 2-year warranty
- Thermoblock is not included
Product description
Product description

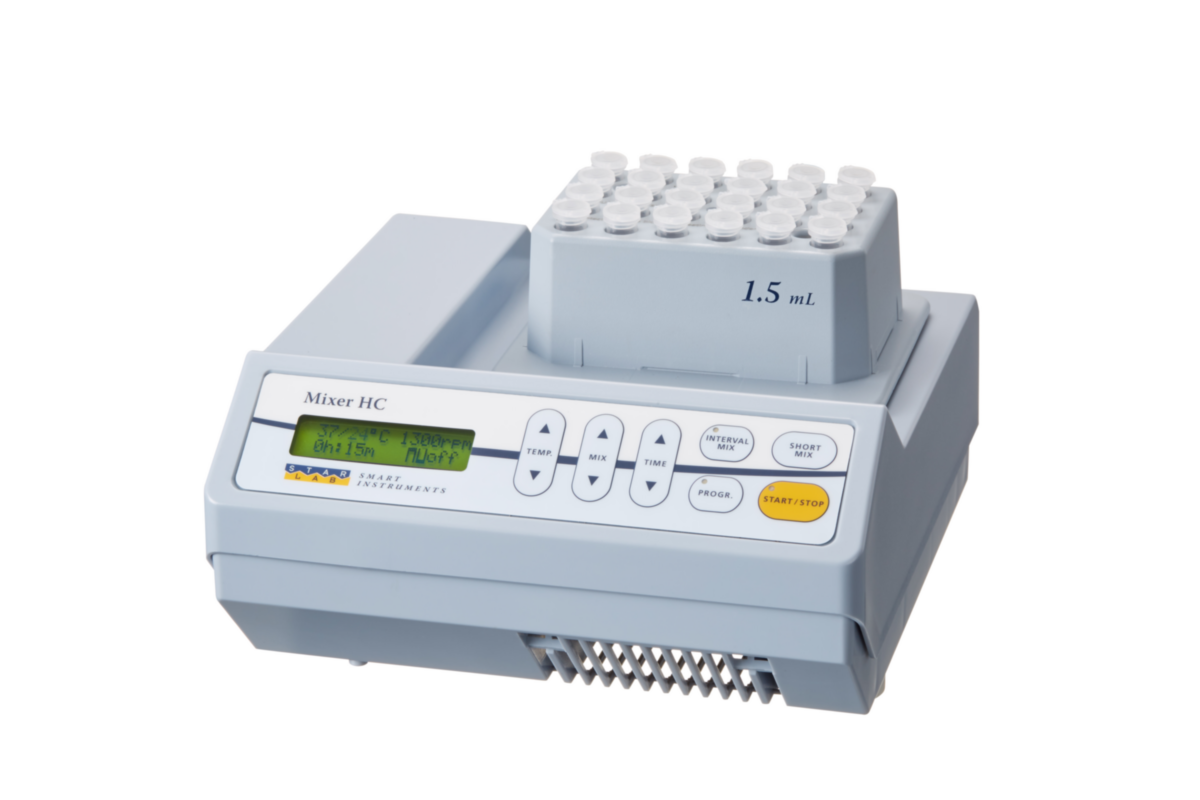

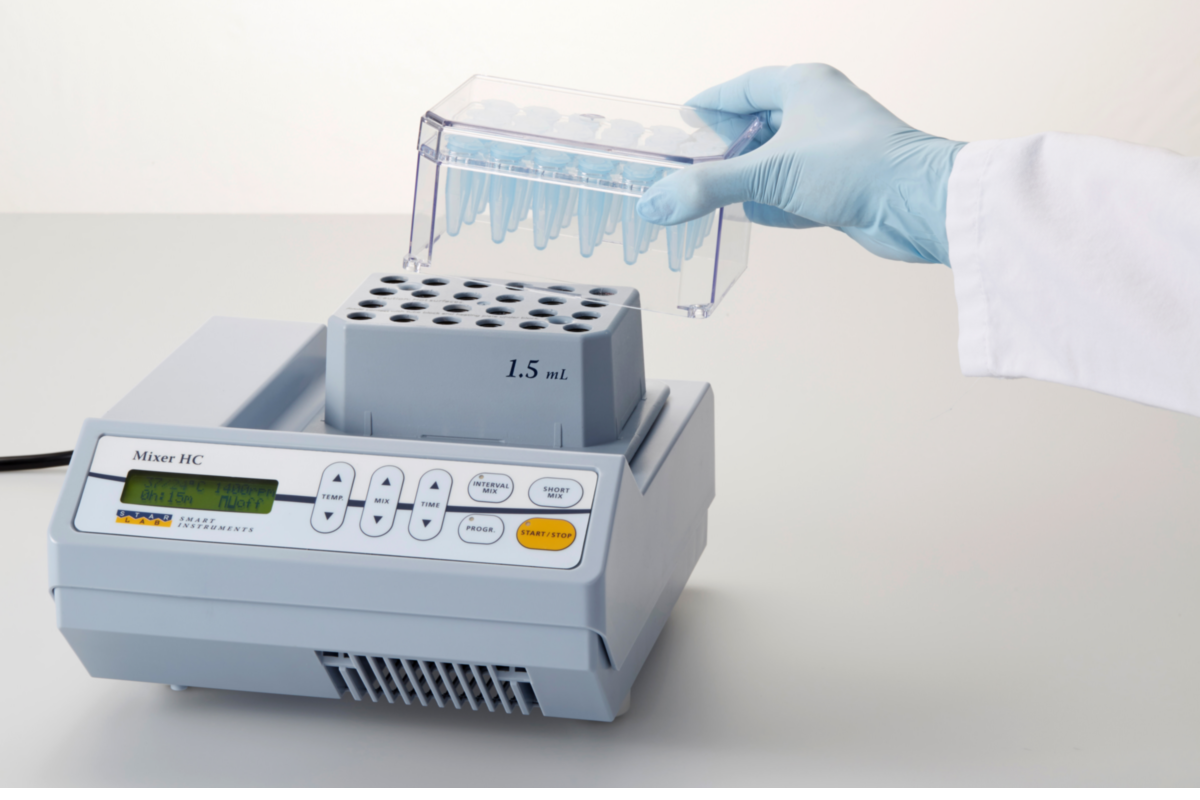

Thermomixer-Mixer HC
Mixing. Heating. Cooling. Timing. - All combined in one unit to speed up your daily tasksThe Mixer HC is suitable for a wide range of applications due to the selection of exchangeable thermoblocks (sold separately) available for commonly used vials and plates. The powerful motor mixes up to 1500 rpm while the precise thermal element heats samples up to 99° C or cools them down as far as 13° C below room temperature. The intuitive setting of parameters and simple programming makes the Mixer HC very easy to use, with all parameters summarized on one, easy to read display. The robust construction despite its small footprint makes the Mixer HC your new companion for your daily lab work.

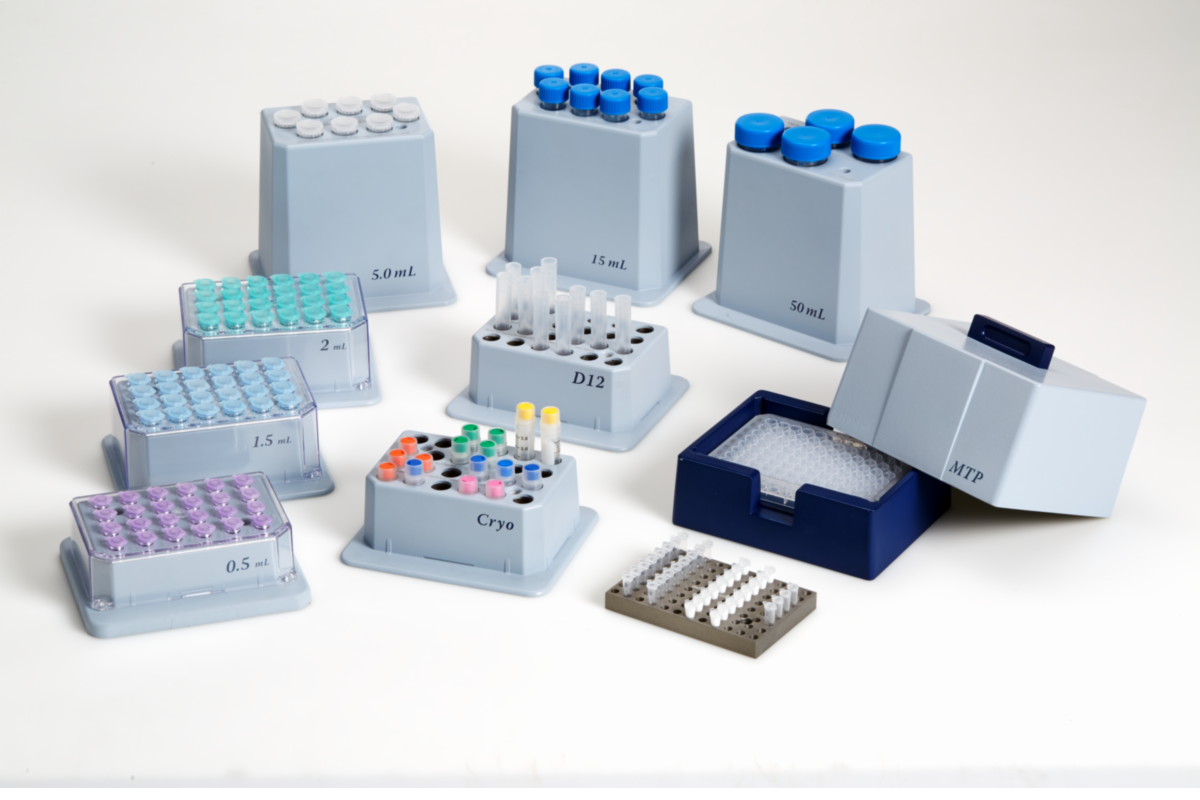

Nine exchangeable thermoblocks (sold separately) for a wide range of tube and plate formats are available.The Mixer HC offers precise temperature control and broad temperature range for reliable and reproducible sample preparation
Additional information
Additional information
Dimensions (W × D × H)220 mm × 250 mm × 125 mm Dimensions (W × D)220 mm × 250 mm
Weight 3.2 kg
Autoclavable No
Type of movement Orbital
Operation Mixing, temperature control, simultaneous mixing and temperature control
Power supply100 – 240 V, 50/60 Hz
Max. power consumption90 W
Timing capacity1 min to 99:59 hours, infinitely adjustable
Mixing frequency 0.5 ml tube 300 - 1500 1/min
Mixing frequency 1.5 /2.0 ml tube 300 - 1400 1/min
Mixing frequency 5.0 ml 300 - 750 1/min
Mixing frequency 15/50 ml tube300 - 750 1/min
Mixing frequency Cryo genic tube300 - 1400 1/min
Mixing frequency plates 300 - 800 1/min when loading>200 g
Cooling rate2 to 3 °C/min
Heating rate5 °C/min
Operating temperature4 to 35 °C
Permissible Ambient Temperature4 – 35 °C
Temperature Control Range Tubes13 °C below room temperature to 99 °C
Temperature Control Range Plates10 °C below room temperature to 99 °C
InterfacesRS-232, Sub-D9 male
Mixing orbit3 mm
Sample capacityCapacity depends on thermoblock used
Speed Range300 – 1,500 rpm - depends on the thermoblock used
